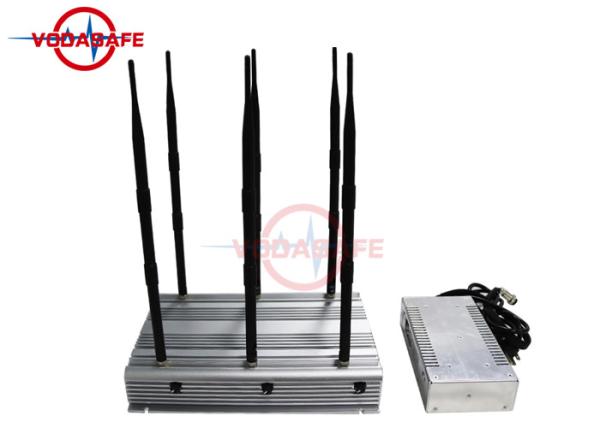

Customized Six Antennas Mobile Phone Signal Jammer/GpsL1-L5 Remote Control Signals are Optional
Model:X6Plus jamming for CDMA/GSM/3G/4GLTE cellphone/Wi-Fi /Bluetooth
America Type frequency for United States,Canada, Mexico,S. America.
1. 2GGSM850MHz:850-894MHz;15W(GSM/CDMA)
2. 2GGSM1900MHz:1920-1990MHz;15W (2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz 15W
4. 3G2100MHz:2100-2170MHz;15W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz 15W
6. 4GWiMAX/4GLTE2600MHz:2500-2700MHz 15W
Total Output Power: 90W
Features:
- High power professional jammer model
- Portable and fixed
- Friendly use and maintenance
- 24/7hours working, Could continue to work
- Powerful cell phone Wi-Fi jammers
Applicable place:
Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited factory, bank, train, car, bus etc.
Specification:
| Total Output power | 90W |
| RF Output power Each Band | 15W |
| Cover Radius | Up to 100 meters radius (Signal≤-85dBm),the coverage range depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) |
| Antenna Type | High gain Omni-directional antenna |
| Electric Filed (SAR) | Compatible with ICNIRP Standards(Human safe) |
| Operating Temp | -20 to +50 degrees Celsius |
| Storage Temp | -40 to +60 degrees Celsius |
| Optional Function | Remote control on/off (3-5m) |
| Dimension(LXWXH) | 335 x 238 x 60mm |
| Weight | 10kg |
Adjustable Switcher: Finding the adjustable switch of system’s to adjust each bands RF power output level or turn off without influencing the other bands operation.
Antennas:
Optional Antennas:directional panel antenna / high gain omini-directional
Use directional antenna the transmit antennas should be put at the edges of shielding area.
Package contents:
1pcs Signal Jammer
1pcs AC 110 or 220V power supplier
6pcs omni directional Antenna
We could supply customized service by your detail requirements about frequencies setting.
